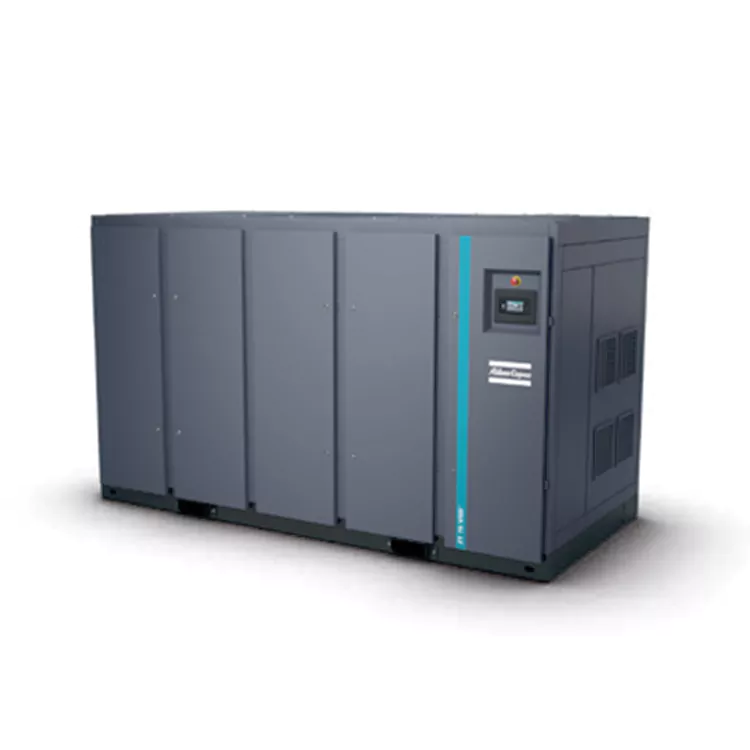

Soláthraíonn DECHUAN Comhbhrúiteoir Aeir Scriú Ola-Saor in Aisce Dual-Drive VSD le haghaidh soláthair mórdhíola domhanda. Le dhá mhótar maighnéad buan neamhspleách, déanann an meaisín seo úsáid fuinnimh a bharrfheabhsú thar seala déantúsaíochta athraitheacha.
Chun billí leictreachais mhonarcha a ísliú, cuireann ordú ó shaineolaithe Comhbhrúiteoir Aeir Scriú Ola VSD Dual-Drive tSín toradh láithreach ar infheistíocht. Cuireann dearadh dé-mhaighnéad buan DECHUAN deireadh le caillteanais cúplála meicniúla traidisiúnta agus ceadaíonn sé coigeartuithe sreafa leathan ó 20% go 100%, ag meaitseáil ualaí uirlisí luaineacha go beacht.
Úsáideann comhbhrúiteoirí tiomána minicíochta athraitheacha traidisiúnta mótar amháin chun na rotors scriú ardbhrú agus ísealbhrú araon a chasadh trí mheicníocht fearas roinnte. Cruthaíonn sé seo caillteanais mheicniúla nuair a bhíonn sé ag rith ar luas íseal. Úsáideann an comhbhrúiteoir aeir ailtireacht scoilte níos fearr:
• Mótair Maighnéad Buan Neamhspleách IE5: Tá na céimeanna comhbhrúiteora íseal-bhrú agus ardbhrú á dtiomáint ag mótair maighnéad buan IP66 tiomnaithe ar leith. Ritheann gach céim ar a phróifíl luais optamach féin.
• Raon Rialaithe Sreafa Leathan: Déanann ár n-inverters minicíochta saincheaptha coigeartú sreafa seasta idir 20% agus 100%, rud a chuireann deireadh go hiomlán leis na "fuinneoga luais" sriantacha a fhaightear i gcórais aon-mhótair ag deireadh níos ísle.
• Gan ró-chomhbhrúite brú: Coinníonn an córas luaineachtaí brú líne go docht laistigh de 0.10 bar, rud a choscann an dramhaíl fuinnimh a bhaineann le ró-bhrú ar an eangach mhonarcha.
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Cumhacht Suiteáilte(kW) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 55 -7.5STD | 7.5 | 169.7 | 10.2 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -8.6STD | 8.6 | 156.6 | 9.4 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 55 -10STD | 10 | 140.9 | 8.5 | 55 | 72 | 2245 | 2685 | 2230 | 1660 | 2000 |
| ZR 75 -7.5STD | 7.5 | 224.7 | 13.5 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -8.6STD | 8.6 | 214.9 | 12.9 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 75 -10STD | 10 | 205.0 | 12.3 | 75 | 72 | 2385 | 2825 | 2230 | 1660 | 2000 |
| ZR 90 -7.5STD | 7.5 | 267.2 | 16.0 | 90 | 72 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -8.6STD | 8.6 | 250.9 | 15.1 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZR 90 -10STD | 10 | 236.5 | 14.2 | 90 | 74 | 2334 | 2774 | 2230 | 1660 | 2000 |
| ZT 55 -7.5STD | 7.5 | 166.4 | 10.0 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -8.6STD | 8.6 | 153.2 | 9.2 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 55 -10STD | 10 | 137.6 | 8.3 | 55 | 78 | 2810 | 3055 | 2630 | 1660 | 2150 |
| ZT 75 -7.5STD | 7.5 | 221.3 | 13.3 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -8.6STD | 8.6 | 211.6 | 12.7 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 75 -10STD | 10 | 201.6 | 12.1 | 75 | 78 | 2930 | 3175 | 2630 | 1660 | 2150 |
| ZT 90 -7.5STD | 7.5 | 263.9 | 15.8 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -8.6STD | 8.6 | 247.5 | 14.9 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
| ZT 90 -10STD | 10 | 233.1 | 14.0 | 90 | 79 | 2940 | 3185 | 2630 | 1660 | 2150 |
ZR/ZT 75-90 VSD (FF) STD
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD -8.6 STD | 8.6 | 74.7-229.4 | 4.5-13.8 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 75 VSD -10.4 STD | 10.4 | 81.7-202.9 | 4.9-12.2 | 73 | 2219 | 2659 | 2230 | 1660 | 2000 |
| ZR 90 VSD -8.6 STD | 8.6 | 74.1-282.5 | 4.4-16.9 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZR 90 VSD -10.4 STD | 10.4 | 75.5-250.5 | 4.5-15.0 | 73 | 2270 | 2710 | 2230 | 1660 | 2000 |
| ZT 75 VSD -8.6 STD | 8.6 | 71.2-226.0 | 4.3-13.6 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 75 VSD -10.4 STD | 10.4 | 78.2-199.6 | 4.7-12.0 | 78 | 2795 | 3040 | 2630 | 1660 | 2150 |
| ZT 90 VSD -8.6 STD | 8.6 | 70.6-279.1 | 4.2-16.7 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
| ZT 90 VSD -10.4 STD | 10.4 | 72.0-247.1 | 4.3-14.8 | 79 | 2855 | 3100 | 2630 | 1660 | 2150 |
Rinneadh coinníollacha tagartha feidhmíochta an aonaid a thomhas de réir Iarscríbhinn C, an 4ú heagrán (2009) de ISO 1217:
· Taise choibhneasta: 0%
· Brú ionraoin iomlán: 1 barra
· Teocht ionraoin: 20°C Rinneadh ráta sceite (FAD) a thomhas ag na brúnna oibriúcháin seo a leanas:
Cineál luas tairiseach:
· -7.5 cineál barra: 7 mbarra
· -8.6 cineál barra: 7 bar
· -10 cineál barra: 9 bar
Cineál VSD:
· -8.6 cineál barra: 7 bar
· -10.4 cineál barra: 9 bar
· (2) Leibhéal brú fuaime astaithe ualaithe Aicme A an stáisiúin oibre (LpWSAd). Arna thomhas de réir ISO 2151:2004 (ag baint úsáide as modh scanadh fuaimdhéine 150 9614/2). Is é an fachtóir ceartúcháin nua-bhreisluacha luach go hiomlán neamhchinnte (KpAd), i gcomhréir leis an gcód tástála.
· (3) Is le haghaidh tagartha amháin an meáchan; is é an meáchan iarbhír a sholáthrófar a bheidh i réim.
ZR/ZT 110-160 (FF) STD
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Cumhacht Suiteáilte(kW) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 110 -7.5 STD | 7.5 | 318.2 | 19.1 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -8.6 STD | 8.6 | 297.5 | 17.8 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 110 -10 STD | 10 | 277.6 | 16.7 | 110 | 74 | 2800 | 3600 | 2431 | 1660 | 2000 |
| ZR 132 -7.5 STD | 7.5 | 362.9 | 21.8 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -8.6 STD | 8.6 | 338.5 | 20.3 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 132 -10 STD | 10 | 314.4 | 18.9 | 132 | 74 | 2850 | 3650 | 2431 | 1660 | 2000 |
| ZR 145 -7.5 STD | 7.5 | 392.9 | 23.6 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -8.6 STD | 8.6 | 364.1 | 21.8 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 145 -10 STD | 10 | 350.8 | 21.0 | 145 | 74 | 2878 | 3678 | 2431 | 1660 | 2000 |
| ZR 160 -7.5 STD | 7.5 | 434.0 | 26.0 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -8.6 STD | 8.6 | 418.3 | 25.1 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZR 160 -10 STD | 10 | 399.0 | 23.9 | 160 | 74 | 2890 | 3690 | 2431 | 1660 | 2000 |
| ZT 110 -7.5 STD | 7.5 | 315.0 | 18.9 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -8.6 STD | 8.6 | 294.2 | 17.6 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 110 -10 STD | 10 | 274.3 | 16.5 | 110 | 79 | 3048 | 3835 | 3400 | 1660 | 2150 |
| ZT 132 -7.5 STD | 7.5 | 359.6 | 21.6 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -8.6 STD | 8.6 | 335.3 | 20.1 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 132 -10 STD | 10 | 311.1 | 18.7 | 132 | 79 | 3098 | 3885 | 3400 | 1660 | 2150 |
| ZT 145 -7.5 STD | 7.5 | 389.6 | 23.4 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -8.6 STD | 8.6 | 360.8 | 21.6 | 145 | 79 | 3126 | 3913 | 3400 | 1660 | 2150 |
| ZT 145 -10 STD | 10 | 347.5 | 20.9 | 145 | 79 | 3126 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -7.5 STD | 7.5 | 430.6 | 25.8 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -8.6 STD | 8.6 | 414.9 | 24.9 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
| ZT 160 -10 STD | 10 | 395.6 | 23.7 | 160 | 79 | 3138 | 3925 | 3400 | 1660 | 2150 |
ZR/ZT 110-160 VSD (FF) STD
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR110VSD-8.6 STD | 8.6 | 100.5-319.3 | 6.0-19.2 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR110VSD-10.4 STD | 10.4 | 167.1-292.1 | 10.0-17.5 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-8.6 STD | 8.6 | 107.1-357.1 | 6.5-21.4 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR132VSD-10.4 STD | 10.4 | 166.6-331.0 | 10.0-19.9 | 74 | 2900 | 3700 | 2431 | 1660 | 2000 |
| ZR160VSD- 8.6 STD(V1) | 8.6 | 123.3-390.0 | 7.4-23.4 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD- 10.4 STD(V1) | 10.4 | 166.6-357.8 | 10.0-21.5 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD- 8.6 STD(V2) | 8.6 | 123.3-411.0 | 7.4-24.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZR160VSD- 10.4 STD(V2) | 10.4 | 166.6-377.6 | 10.0-22.7 | 74 | 2920 | 3720 | 2431 | 1660 | 2000 |
| ZT 110 VSD-8.6 | 8.6 | 99.9-327.6 | 6.0-19.2 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 110 VSD-10.4 | 10.4 | 165.5-291.9 | 9.9-17.5 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-8.6 | 8.6 | 124.8-357.5 | 7.5-21.4 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 132 VSD-10.4 | 10.4 | 164.9-331.2 | 9.9-19.9 | 79 | 3098 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD- 8.6 STD(V1) | 8.6 | 143.9-388.8 | 8.6-23.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD- 10.4 STD(V1) | 10.4 | 164.9-358.2 | 9.9-21.5 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD- 8.6 STD(V2) | 8.6 | 146.9-438.2 | 8.8-26.3 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
| ZT 160 VSD- 10.4 STD(V2) | 10.4 | 164.9-378.1 | 9.9-22.7 | 79 | 3118 | 3935 | 3400 | 1660 | 2150 |
De réir ISO 1217 Iarscríbhinn C, an 4ú hEagrán (2009), is iad seo a leanas na coinníollacha tagartha feidhmíochta aonaid:
· Taise choibhneasta: 0%
· Brú ionraoin iomlán: 1 barra
· Teocht ionraoin: 20°C
Déantar díláithriú FAD a thomhas ag na brúnna oibriúcháin seo a leanas:
Samhlacha luas tairiseach:
-7.5 samhlacha barra: 7 bar
-8.6 samhlacha barra: 7 bar
-10 samhlacha barra: 9 bar
Múnlaí VSD:
-8.6 samhlacha barra: 7 bar
-10.4 samhlacha barra: 9 bar
(2) Leibhéal brú fuaime astaithe ualaithe Aicme A an stáisiúin oibre (LpWSAd). Arna thomhas de réir ISO 2151:2004 (modh scanadh fuaimdhéine ISO 9614/2). Níl an fachtóir ceartúcháin nua-bhreise KpAd éiginnte, ag cloí leis an gcód tástála.
(3) V1=380V, V2=400V.
(4) Is le haghaidh tagartha amháin an meáchan; beidh an meáchan iarbhír i réim.
ZR/ZT 200-275 (FF)
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Cumhacht Suiteáilte(kW) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 200 -7,5 | 7.5 | 602.3 | 36.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200 -8.6 | 8.6 | 552.1 | 33.1 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 200-10 | 10 | 506.6 | 30.0 | 200 | 67 | 3860 | 5230 | 3140 | 1662 | 2008 |
| ZR 250 -7.5 | 7.5 | 718.0 | 43.1 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -8.6 | 8.6 | 684.3 | 41.0 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 250 -10 | 10 | 622.8 | 37.4 | 250 | 67 | 4310 | 5680 | 3140 | 1662 | 2008 |
| ZR 275 -7.5 | 7.5 | 774.4 | 46.5 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -8.6 | 8.6 | 718.0 | 43.1 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -10 | 10 | 683.9 | 41.0 | 275 | 67 | 4640 | 6010 | 3140 | 1662 | 2008 |
| ZR 275 -13 | 13 | 561.8 | 33.7 | 275 | 70 | 5250 | 6150 | 5040 | 1662 | 2008 |
| ZT 200 -7.5 | 7.5 | 567.1 | 34.0 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -8.6 | 8.6 | 519.5 | 31.2 | 200 | 77 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 200 -10 | 10 | 497.4 | 29.8 | 200 | 78 | 5250 | 6150 | 5040 | 1662 | 2108 |
| ZT 250 -7.5 | 7.5 | 711.5 | 42.7 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -8.6 | 8.6 | 676.8 | 40.6 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 250 -10 | 10 | 614.3 | 36.9 | 250 | 77 | 5700 | 6600 | 5040 | 1662 | 2108 |
| ZT 275 -7.5 | 7.5 | 745.4 | 44.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -8.6 | 8.6 | 711.5 | 42.7 | 275 | 77 | 6030 | 7080 | 5040 | 1662 | 2108 |
| ZT 275 -10 | 10 | 676.4 | 40.6 | 275 | 78 | 6030 | 7080 | 5040 | 1662 | 2108 |
ZR/ZT 250-315 VSD (FF)
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Cumhacht Suiteáilte(kW) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 250 VSD -8.6 | 8.6 | 242.6-714.4 | 14.6-42.9 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 250 VSD -10.4 | 10.4 | 234.2-640.2 | 14.1-38.4 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -8.6 | 8.6 | 242.6-788.1 | 14.6-47.3 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZR 315 VSD -10.4 | 10.4 | 234.2-700.0 | 14.1-42.0 | 73 | 73 | 4710 | 6400 | 3140 | 1662 | 2008 |
| ZT 250 VSD -8.6 | 8.6 | 238.0-696.9 | 14.3-41.8 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 250 VSD -10.4 | 10.4 | 386.0-633.4 | 23.2-38.0 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -8.6 | 8.6 | 238.0-739.4 | 14.3-44.4 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
| ZT 315 VSD -10.4 | 10.4 | 386.0-681.0 | 23.2-40.9 | 78 | 78 | 5700 | 6950 | 5040 | 1662 | 2108 |
- Taise choibhneasta: 0%
-Brú ionraoin absalóideach: 1bar
- Teocht ionraoin: 20 ° ℃
Tomhaiseadh an ráta sceite (FAD) ag na brúnna oibriúcháin seo a leanas
Cineál luas tairiseach:
-7.5 cineál barra: 7 bar
-8.6 cineál barra: 7 bar
-10 cineál barra: 9 bar
Cineál VSD:
-8.6 cineál barra: 7 bar
-10.4 cineál barra: 9 bar
(2) Leibhéal brú fuaime astaithe ualaithe Aicme A an stáisiúin oibre (LpWSAd).
Arna thomhas de réir ISO 2151:2004 (ag úsáid 150 9614/2 (modh scanadh déine fuaime).
Is é an fachtóir ceartúcháin nua-bhreisluacha luach go hiomlán neamhchinnte (KpAd), i gcomhréir leis an gcód tástála.
(3) Is le haghaidh tagartha amháin an meáchan; is é an meáchan iarbhír a sholáthrófar a bheidh i réim.
ZR 300-750
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Cumhacht Suiteáilte(kW) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 300 -7,5 | 7.5 | 774.6 | 46.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300 -8.6 | 8.6 | 725.7 | 43.5 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 300-10 | 10 | 695.1 | 41.7 | 300 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -7.5 | 7.5 | 848.0 | 50.9 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315 -8.6 | 8.6 | 793.1 | 47.6 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 315-10 | 10 | 766.6 | 46.0 | 315 | 72 | 7950 | 3700 | 2120 | 2400 | |
| ZR 355 -7.5 | 7.5 | 939.1 | 56.3 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -8.6 | 8.6 | 877.1 | 52.6 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 355 -10 | 10 | 839.6 | 50.4 | 355 | 74 | 8050 | 3700 | 2120 | 2400 | |
| ZR 400 -7,5 | 7.5 | 1034.2 | 62.1 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400 -8.6 | 8.6 | 963.9 | 57.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 400-10 | 10 | 930.5 | 55.8 | 400 | 74 | 8150 | 3700 | 2120 | 2400 | |
| ZR 425 -7.5 | 7.5 | 1143.9 | 68.6 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 425 -8.6 | 8.6 | 1063.1 | 63.8 | 450 | 74 | 8250 | 3700 | 2120 | 2400 | |
| ZR 450 -7.5 | 7.5 | 1275.7 | 76.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -8.6 | 8.6 | 1191.8 | 71.5 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 450 -10 | 10 | 1106.3 | 66.3 | 450 | 74 | 8700 | 4320 | 2120 | 2400 | |
| ZR 500 -7,5 | 7.5 | 1399.1 | 78.3 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500 -8.6 | 8.6 | 1305.2 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 500-10 | 10 | 1217.8 | 73.1 | 500 | 74 | 9200 | 4320 | 2120 | 2400 | |
| ZR 630 -7.5 | 7.5 | 1715.0 | 102.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -8.6 | 8.6 | 1595.0 | 95.7 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 630 -10 | 10 | 1484.1 | 88.9 | 630 | 76 | 9800 | 4320 | 2120 | 2400 | |
| ZR 750 -7.5 | 7.5 | 2046.2 | 122.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -8.6 | 8.6 | 1827.4 | 109.6 | 750 | 76 | 10000 | 4320 | 2120 | 2400 | |
| ZR 750 -10 | 10 | 1696.7 | 101.8 | 750 | 76 | 10000 | 4320 | 2120 | 2400 |
ZR 355-900VSD
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Cumhacht Suiteáilte(kW) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Meáchan-Lánfheidhmíocht(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| ZR 355 VSD -8.6 | 8.6 | 371.2-1037.5 | 22.3-62.2 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 355 VSD -10.4 | 10.4 | 374.4-942.4 | 22.5-56.5 | 81 | 81 | 8805 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -8.6 | 8.6 | 371.2-1120.9 | 22.3-67.3 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 400 VSD -10.4 | 10.4 | 374.4-998.6 | 22.5-59.9 | 81 | 81 | 9090 | 4075 | 2120 | 2400 | |
| ZR 500 VSD -10.4 | 10.4 | 374.4-1177.9 | 22.5-70.7 | 81 | 81 | 9190 | 4075 | 2120 | 2400 | |
| ZR 700 VSD -8.6 | 8.6 | 374.4-2061.8 | 54.9-123.7 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 700 VSD -10.4 | 10.4 | 849.7-1840.5 | 51.0-110.4 | 83 | 83 | 11402 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -8.6 | 8.6 | 930.7-2475.4 | 55.8-148.5 | 83 | 83 | 12600 | 4660 | 2120 | 2470 | |
| ZR 900 VSD -10.4 | 10.4 | 864.8-1873.2 | 51.9-112.4 | 83 | 83 | 12600 | 4660 | 2120 | 2470 |
Rinneadh coinníollacha tagartha feidhmíochta an aonaid a thomhas de réir Iarscríbhinn C, an 4ú heagrán (2009) de ISO 1217:
· Taise choibhneasta: 0%
· Brú ionraoin iomlán: 1 barra
· Teocht ionraoin: 20°C Rinneadh ráta sceite (FAD) a thomhas ag na brúnna oibriúcháin seo a leanas:
Cineál luas tairiseach:
· -7.5 cineál barra: 7 mbarra
· -8.6 cineál barra: 7 bar
· -10 cineál barra: 9 bar
Cineál VSD:
· -8.6 cineál barra: 7 bar
· -10.4 cineál barra: 9 bar
· (2) Leibhéal brú fuaime astaithe ualaithe Aicme A an stáisiúin oibre (LpWSAd). Arna thomhas de réir ISO 2151:2004 (ag baint úsáide as modh scanadh fuaimdhéine 150 9614/2). Is é an fachtóir ceartúcháin nua-bhreisluacha luach go hiomlán neamhchinnte (KpAd), i gcomhréir leis an gcód tástála.
· (3) Is le haghaidh tagartha amháin an meáchan; is é an meáchan iarbhír a sholáthrófar a bheidh i réim.
ZR 200X-400X
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Cumhacht Suiteáilte(kW) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|---|
| ZR 200X -7.5 | 7.5 | 623.1 | 37.4 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -8.6 | 8.6 | 601.9 | 36.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 200X -10 | 10 | 551.7 | 33.1 | 200 | 67 | 3860 | 3140 | 1662 | 2008 |
| ZR 250X -7.5 | 7.5 | 717.7 | 43.1 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 250X -8.6 | 8.6 | 683.8 | 41.0 | 250 | 67 | 4310 | 3140 | 1662 | 2008 |
| ZR 315X -7.5 | 7.5 | 939.0 | 56.3 | 315 | 76 | 7950 | 3700 | 2120 | 2400 |
| ZR 355X -7.5 | 7.5 | 1034.2 | 62.1 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -8.6 | 8.6 | 963.5 | 57.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 355X -10 | 10 | 930.2 | 55.8 | 355 | 76 | 8050 | 3700 | 2120 | 2400 |
| ZR 400X -7.5 | 7.5 | 1143.8 | 68.6 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
| ZR 400X -8.6 | 8.6 | 1062.7 | 63.8 | 400 | 76 | 8150 | 3700 | 2120 | 2400 |
ZR/ZT 75-160 VSD+
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 90 VSD+ | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 110 VSD+ | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZR 132 VSD+ | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 2500 | 2030 | 1660 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 160 VSD+ | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 2500 | 2030 | 1660 | 2000 |
| ZT 75 VSD+ | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 90 VSD+ | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 110 VSD+ | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 132 VSD+ | 10.4 | 78.8-377.5 | 4.7-22.7 | 72 | 3150 | 3400 | 1654 | 2000 |
| ZT 145 VSD+ | 10.4 | 78.8-409.0 | 4.7-24.5 | 74 | 3150 | 3400 | 1654 | 2000 |
| ZT 160 VSD+ | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3150 | 3400 | 1654 | 2000 |
ZR/ZT 75-160 VSD+ FF
| Múnla | Uasbhrú sceite (barra) | Trácht FAD(s) | Trácht FAD(m³/nim) | Leibhéal Torainn(dB(A)) | Meáchan-Caighdeánach(kg) | Méid L(mm) | Méid W(mm) | Méid H(mm) |
|---|---|---|---|---|---|---|---|---|
| ZR 75 VSD+ FF | 10.4 | 78.8-229.9 | 4.7-13.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 90 VSD+ FF | 10.4 | 78.8-283.9 | 4.7-17.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 110 VSD+ FF | 10.4 | 78.8-330.3 | 4.7-19.8 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 132 VSD+ FF | 10.4 | 78.8-384.0 | 4.7-23.0 | 68 | 3400 | 3400 | 1660 | 2000 |
| ZR 145 VSD+ FF | 10.4 | 78.8-415.2 | 4.7-24.9 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZR 160 VSD+ FF | 10.4 | 78.8-468.2 | 4.7-27.1 | 70 | 3400 | 3400 | 1660 | 2000 |
| ZT 75 VSD+ FF | 10.4 | 78.8-227.4 | 4.7-13.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 90 VSD+ FF | 10.4 | 78.8-276.9 | 4.7-16.6 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 110 VSD+ FF | 10.4 | 78.8-323.4 | 4.7-19.4 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 132 VSD+ FF | 10.4 | 107.0-377.5 | 6.4-22.7 | 72 | 3790 | 4085 | 1654 | 2000 |
| ZT 145 VSD+ FF | 10.4 | 118.0-409.0 | 7.1-24.5 | 74 | 3790 | 4085 | 1654 | 2000 |
| ZT 160 VSD+ FF | 10.4 | 124.7-436.4 | 7.5-26.2 | 74 | 3790 | 4085 | 1654 | 2000 |
Rinneadh coinníollacha tagartha feidhmíochta an aonaid a thomhas de réir Iarscríbhinn C, an 4ú heagrán (2009) de ISO 1217:
· Taise choibhneasta: 0%
· Brú ionraoin iomlán: 1 barra
· Teocht ionraoin: 20°C Rinneadh ráta sceite (FAD) a thomhas ag na brúnna oibriúcháin seo a leanas:
Cineál luas tairiseach:
· -7.5 cineál barra: 7 mbarra
· -8.6 cineál barra: 7 bar
· -10 cineál barra: 9 bar
Cineál VSD:
· -8.6 cineál barra: 7 bar
· -10.4 cineál barra: 9 bar
· (2) Leibhéal brú fuaime astaithe ualaithe Aicme A an stáisiúin oibre (LpWSAd). Arna thomhas de réir ISO 2151:2004 (ag baint úsáide as modh scanadh fuaimdhéine 150 9614/2). Is é an fachtóir ceartúcháin nua-bhreisluacha luach go hiomlán neamhchinnte (KpAd), i gcomhréir leis an gcód tástála.
· (3) Is le haghaidh tagartha amháin an meáchan; is é an meáchan iarbhír a sholáthrófar a bheidh i réim.
Ritheann comhbhrúiteoirí luas seasta traidisiúnta ag tarraingt leictreach iomlán fiú nuair nach dteastaíonn ach aschur aeir 40% ó d'uirlisí monarchan. Déantar an farasbarr aer comhbhrúite a aeráil isteach san atmaisféar nó a chur amú le linn timthriallta fada díluchtaithe neamhéifeachtúla áit a gcasann an mótar gan obair úsáideach a dhéanamh.
Tagann gach Comhbhrúiteoir Aeir Scriú Ola VSD Dual-Thiomántáin atá comhtháite lenár mol bainistíochta cianda Internet of Things (IoT). Is féidir le hinnealtóirí monarchan luasanna mótair, tarraingt cumhachta agus foláirimh seirbhíse a sheiceáil go sábháilte ó aon ríomhaire údaraithe nó gléas soghluaiste. Ligeann an trédhearcacht seo d’fhoirne cothabhála coigilteas beachta fuinnimh seachtain i ndiaidh seachtaine a fhíorú.
Reáchtálann monarchana teicstíle meaisíní fíodóireachta leanúnacha nuair a éilíonn teannas snátha brú aeir cobhsaí, ach aistríonn an toirt beacht atá ag teastáil go leanúnach mar thimthriall na loom. Shuiteáil DECHUAN comhbhrúiteoir ag monarcha teicstíle mór. Rinne an dé-chóras maighnéad buan IE5 rianú ar aistrithe dinimiciúla an mhuilinn láithreach, ag coinneáil brú líne seasta laistigh de 0.10 barra agus ag gearradh billí cumhachta comhbhrúiteora míosúla na háise 35%.
A: Ní hea. Tá scagairí armónacha agus sciath ionsuite i ngach caibinéid DECHUAN VSD. Tá siad deimhnithe go hiomlán lena chinntiú nach ndéanann leictreonaic comhbhrúiteora línte cumhachta áitiúla a shaobhadh nó difear do threalamh déantúsaíochta uathoibrithe íogair.
A: Ní hea. Úsáideann ár mótair mhaighnéad buan IE5 atá saindeartha le tithíocht imthacaí ola-lubricated atá séalaithe go hiomlán agus atá comhtháite go díreach le córas lubrication lárnach an chomhbhrúiteora. Blocann an dearadh seo salachar agus taise comhthimpeallach agus deireadh a chur le sceidil ramhar láimhe.
A: Cinntíonn an rátáil IP66 séalaithe iomlán i gcoinne deannach trom, snáithíní, agus scairdeanna uisce ardbhrú. Ligeann sé seo do na mótair maighnéad buan oibriú go hiontaofa i dtimpeallachtaí tais, lint-trom teicstíle gan gearrchiorcadú inmheánach.
Cóipcheart © 2025 Dechuan Compressor (Shanghai) Co., Ltd. Gach ceart ar cosaint.
